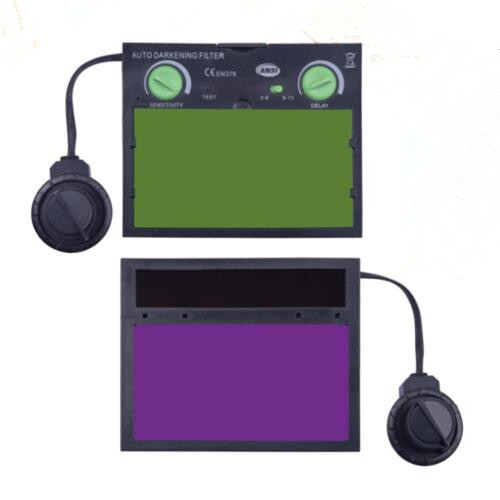

Large Viewing Auto Darkening Filter/Replaceable Lens 206S
·Fashion appearance,ultra light designing,wearing comfortable. ·Solar powered with lithium battery assist for long life( up to 5000 hrs). ·High strong materials and fire retardant,can prevent resistance,anti-aging. ·High definition protective filter,you can see the welding conditions clearly when welding the goods. ·Use high quality LCD and multilayer optical interference filter. ·Welding luminosity is soft and comfortable.Protect your eyes to the fullest extent. ·Sensitivity and delay time can be adjustable. ·Lens darkening Reaction is 1/25000 sec.Striking the arc,the observing window darkens immediately. ·Permanent UV/IR protection.16 levels. ·Low battery alarm,Self-check ·Grinding and welding mode can be chosen. ·Ideal for MIG and STICK welding,TIG rating,all kinds of welding and cutting mode except laser welding. ·Can be painted into different colors and decals. ·Ultra-low power consumption.Battery replaceable.
Product Characteristics:
·Fashion appearance,ultra light designing,wearing comfortable.
·Solar powered with lithium battery assist for long life( up to 5000 hrs).
·High strong materials and fire retardant,can prevent resistance,anti-aging.
·High definition protective filter,you can see the welding conditions clearly when welding the goods.
·Use high quality LCD and multilayer optical interference filter.
·Welding luminosity is soft and comfortable.Protect your eyes to the fullest extent.
·Sensitivity and delay time can be adjustable.
·Lens darkening Reaction is 1/25000 sec.Striking the arc,the observing window darkens immediately.
·Permanent UV/IR protection.16 levels.
·Low battery alarm,Self-check
·Grinding and welding mode can be chosen.
·Ideal for MIG and STICK welding,TIG rating,all kinds of welding and cutting mode except laser welding.
·Can be painted into different colors and decals.
·Ultra-low power consumption.Battery replaceable.
·Working temperature:-5℃–55℃（23°F–131°F）.
·Storage temperature:-20℃–70℃（-4°F–158°F）.
·Warranty:3 years.
·Life expectancy:10 years.
·Offer OEM/ODM Service.
·CE,ANSI,CSA,ROHS approved.
Auto-Darkening Filter Technical Specification
| Filter Model | ADF-206S |
| Arc Sensor | 4 |
| Filter dimension | 110*90*9mm |
| View size | 98*53mm |
| Light Shade No. | DIN4 |
| Dark Shade No. | DIN5-9/DIN9-13 |
| Switching time | <1/25,000S |
| Delay time | 0.1-0.8S stepless adjustment |
| Sensitivity control | Low or high stepless adjustment |
| ADF Self-Check | Yes |
| Low Battery Alarm | Yes |
| Ultraviolet trasmittance | 313nm<0.00006%, 365nm<0.00006% |
| UV/IR protection | Up to shade DIN16 |
| Infrared ray through rate | 780-1300nm<0.003%,1300-2000nm<0.009% |
| Battery | Replaceable Lithium battery +Solar cells |
| Power on/off | Full automatic |
| Materials | The original import ultra light strengthen PP |
Our Services
-OEM and ODM service.
-Various styles and models for your choice
-Customer’s designs are welcome
QUALITY CERTIFICATES
