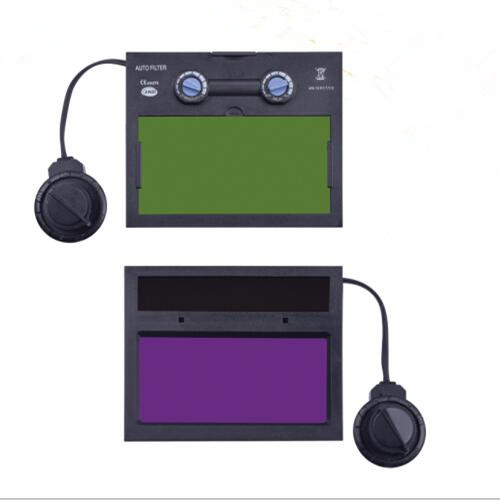

Solar auto darkening filter of welding helmet

Sensitivity and delay time is adjustable· High definition protective filter·

SKU: R-108SH Category:

Share on FacebookTweet about this on TwitterShare on LinkedInShare on Google+Pin on Pinterest
INQUIRY

Product Description

· Battery Powered with Solar-assist for Long Life( up to 5000 hrs)

·  High strong materials and fire retardant

· Sensitivity and delay time is adjustable·

· High definition protective filter·

· Lens darkening Reaction is 1/25000 sec.

· Ideal for MIG and STICK Welding, TIG Rating

· Fashion appearance,ultra light designing,wearing comfortable

· Offer OEM/ODM

    Technical Specification


Filter Model ADF-108SH
Arc Sensor 2
Filter dimension 110*90*9mm
View size 93*43mm
Light Shade No. DIN4
Dark Shade No. DIN9-13
Switching time <1/25,000S
Delay time 0.1-0.8S stepless adjustment
Sensitivity control Low or high stepless adjustment
ADF Self-Check N0
Low Battery Alarm N0
Ultraviolet trasmittance 313nm<0.00006%, 365nm<0.00006%
UV/IR protection Up to shade DIN16
Infrared ray through rate 780-1300nm<0.003%,1300-2000nm<0.009%
Battery Replaceable Lithium battery +Solar cells
Power on/off Full automatic
Materials The original import ultra light strengthen PP
